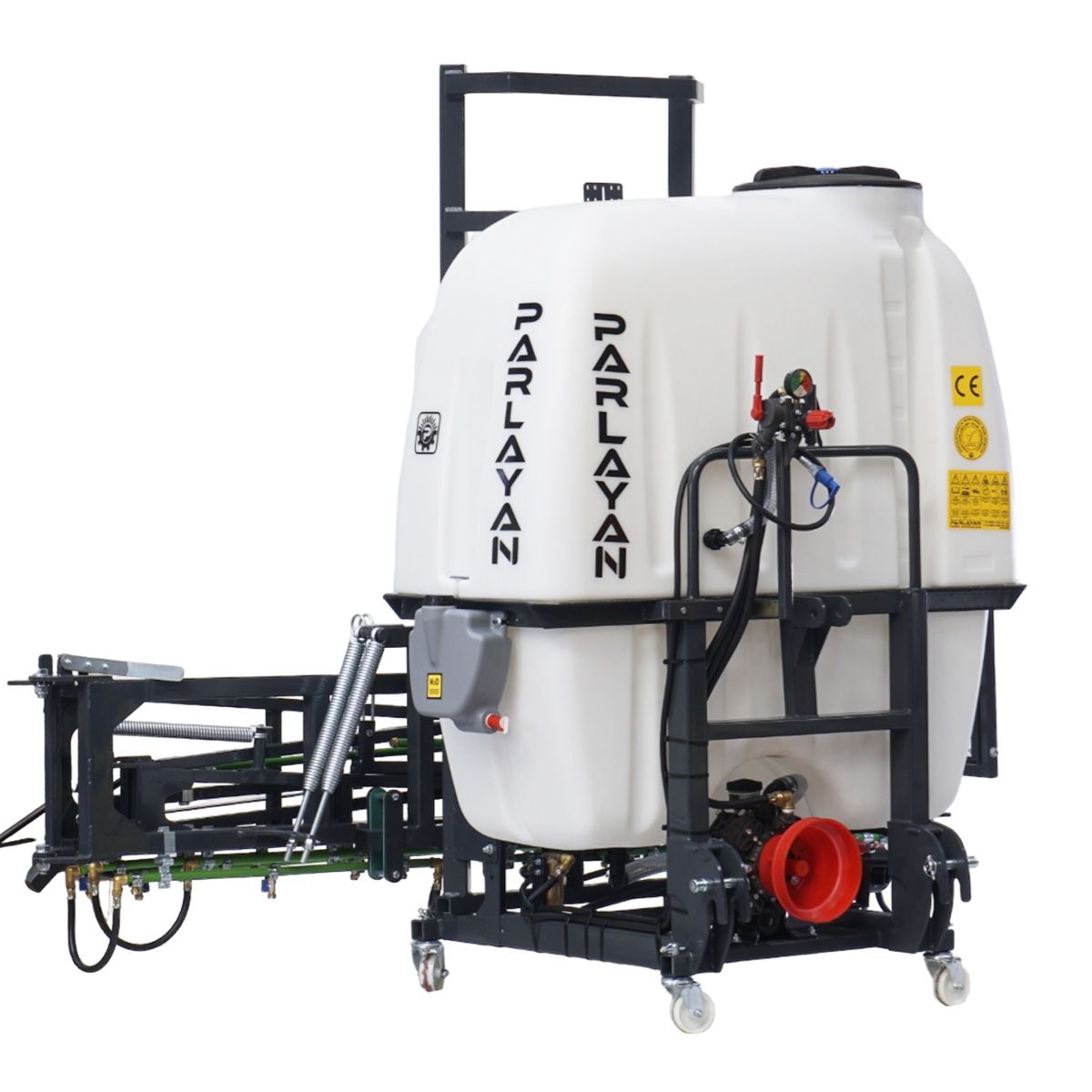

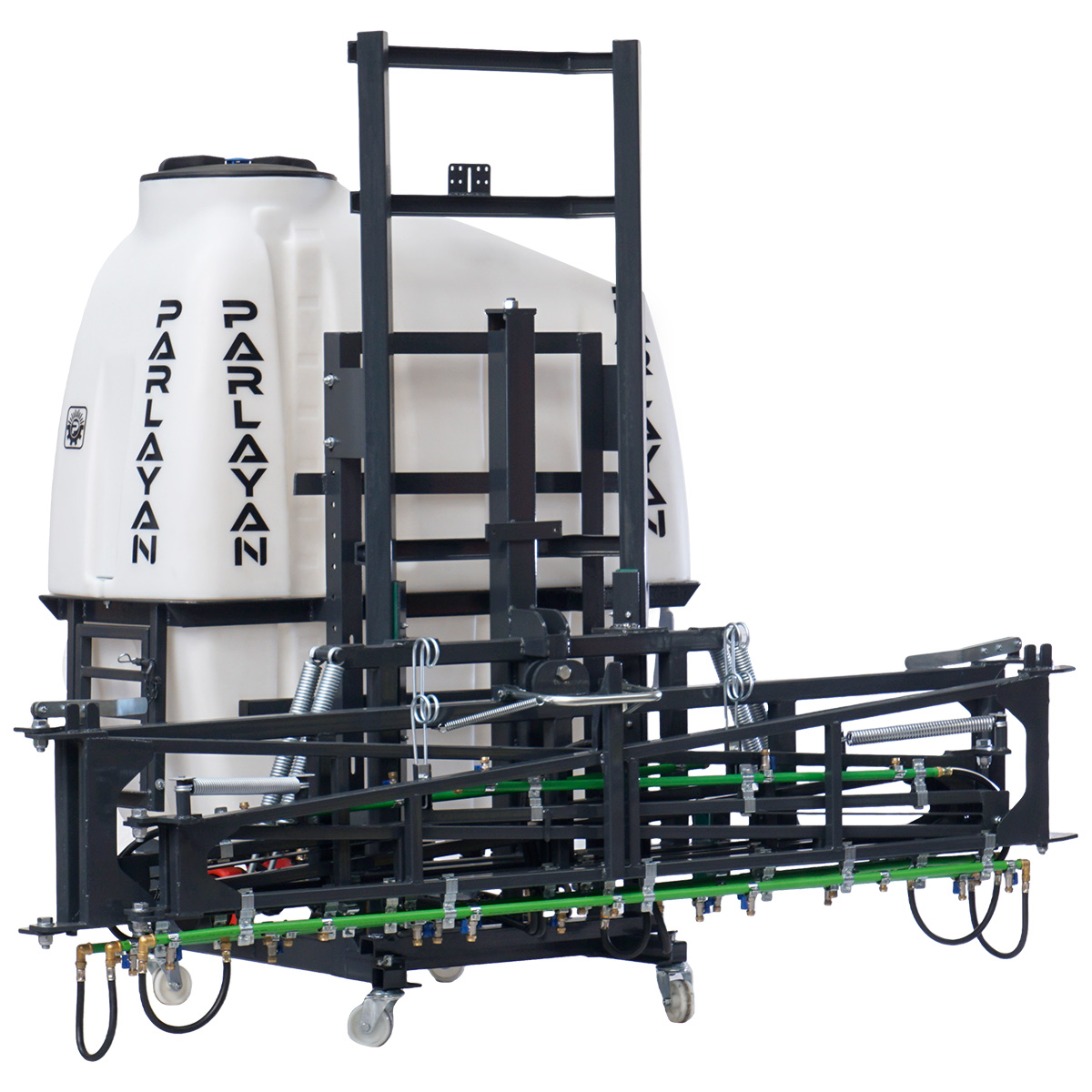

Mounted Type Field Sprayer

Mounted Type Field Sprayer
Mounted Type Field Sprayer
The special arm allows for manual right-left folding movements in the rear, while the up-down movements are achieved through a piston, providing ease of use with its mechanical structure.
TANK CAPACITY
  400 LT 600 LT 800 LT 1000 LT



1000 LT DIMENSIONS Width Height Depth Weight
  350 CM 235 CM 160 CM 433 KG



TECHNICAL SPECIFICATIONS
Tank Material Plastic (Polyethylene)
Pump Model Annovi Reverberi AR 1064
Pump Pressure 50 BAR
Pump Flow Rate 106 L/min
Control Unit VDR - 50
Operating Speed 540 rpm
Nozzle Type Piston Valve
Nozzle Count 25 (12m) - 31 (15m)
Arm Type Special Folding Arm to the Rear
Hydraulic Lifting Available
Working Width 12/15 Meters
Min. Tractor Power 60 HP





The special arm allows for manual right-left folding movements in the rear, while the up-down movements are achieved through a piston, providing ease of use with its mechanical structure.
